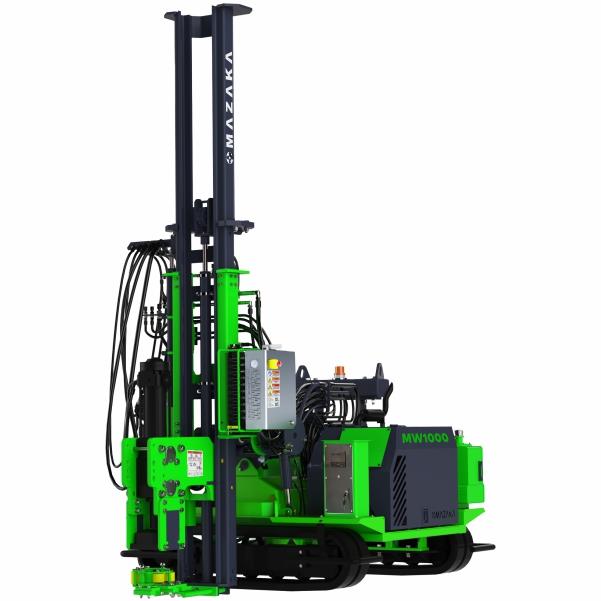

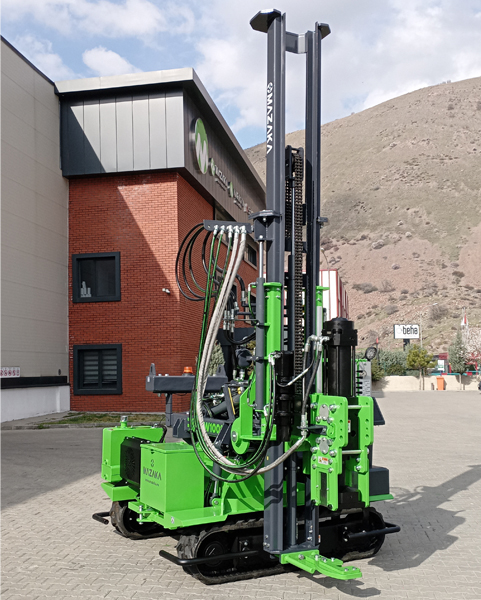

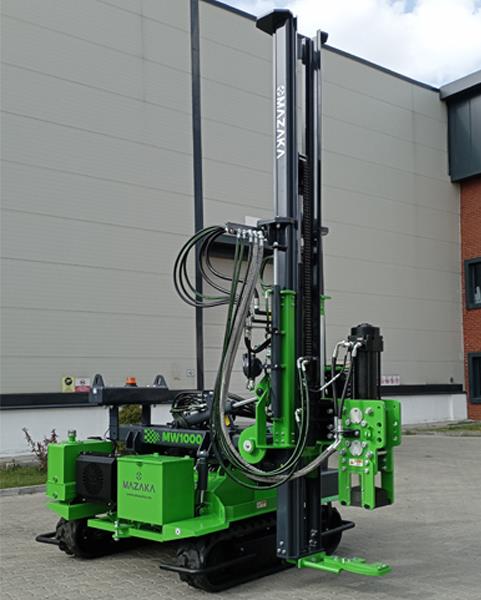

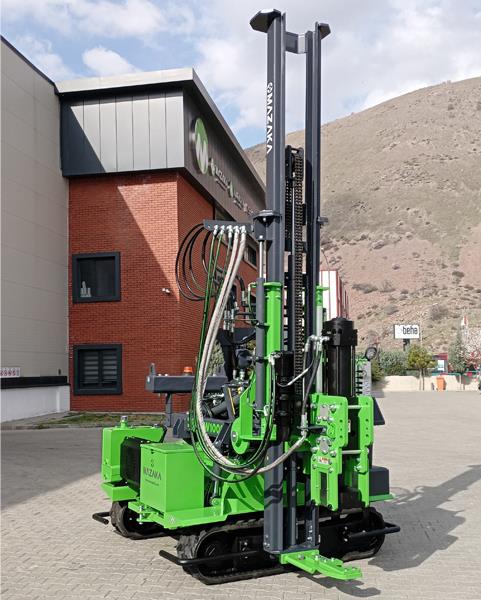

Mazaka MW1000 Pile Driver

Mazaka MW1000 Pile Driver

The Compact Pile Driver

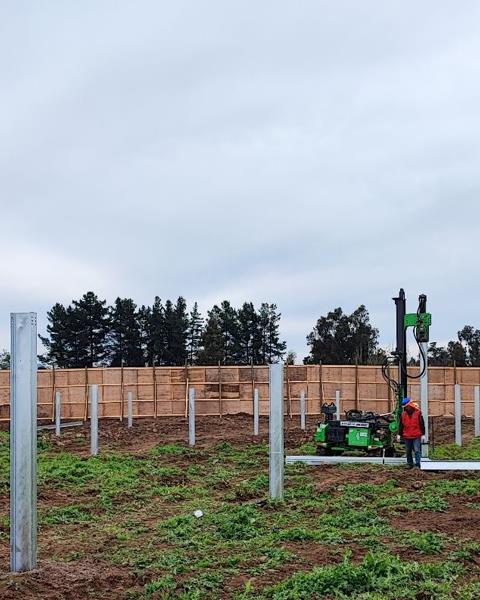

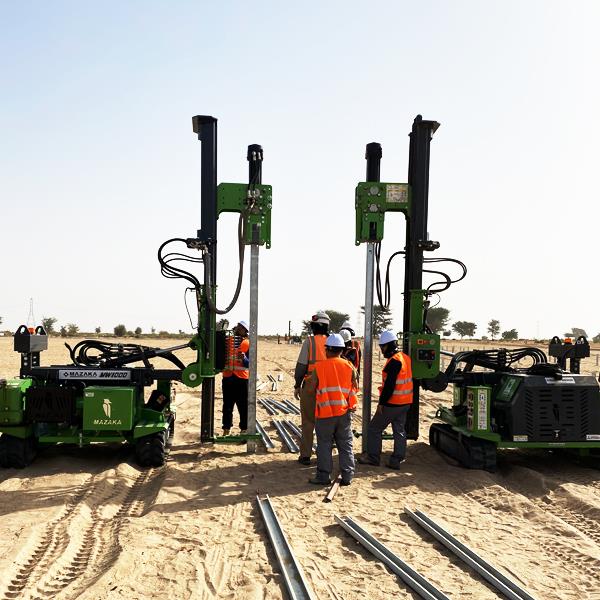

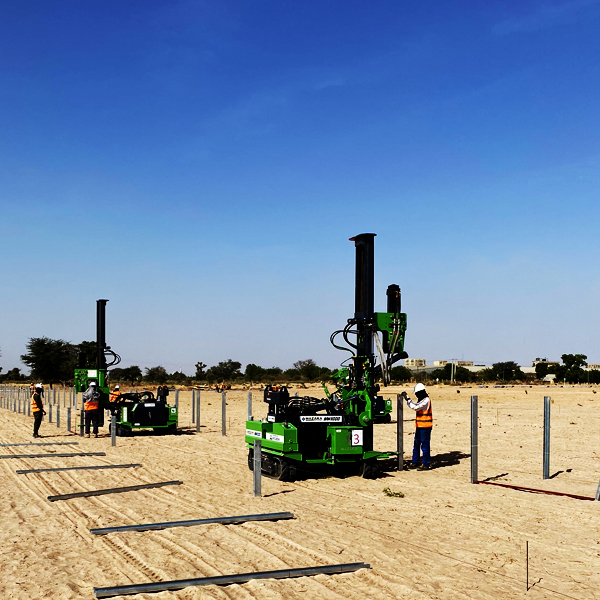

If you are going to install a solar power plant, our

MW1000 model guarantees perfection thanks to its

compact design and user friendliness.

You can choose poles up to 4600 mm.



Get The BrochureAttachmentsContact




Features

Engine

Yanmar


Mast Height

4600 mm

Track Type

Rubber

Weight

4350 Kg

Pile Driver Pile Driver Machine Pile Driver Price Pile Driver Manufacturer Pile Driving Machine Pile Driver Machine For Sale
ENGINE
Make YANMAR
Model 4TNV88
Cylinders 4
Displacement  L2.190cc
Gross Power hp (kW)  47.6 (35.5 kW)
Rated Speed rpm 3.000
Certfica Stage 5
Fuel Tank 60 l
DPF Filter yes
HAMMER
Operating Pressure 120 bar
Power 1100 joule
Oil Flow 80 l

HYDRAULIC SYSTEM
Oil Flow Rate 50-100 bar
Oil Pressure 180 bar
Oil Tank 150 l
TRAVEL SPEED
Low Speed 2 km/h
High Speed 4.4 km/h
Gradeability 20°
Side Walk 10°
DIMENSION
Transport Width 2280 mm
Transport Height 2550 mm
Transport Lenght 2950 mm
Widht of Machine 2280 mm
Height of Machine 4400 mm
Lenhgt of Machine 3110 mm
Weight 4350 kg
Mast Height 4600 mm
Angle of mast forward 12°
Angle of mast backward -63°
OPTIONAL
DTH - Auger - Post Extractor - GPS/GNSS
Remote Control - Hydromotor System For Ground Screw
Auto Leveling - Hammer Height Control System
Laser Meter - Stabilizer Cylinder
.
