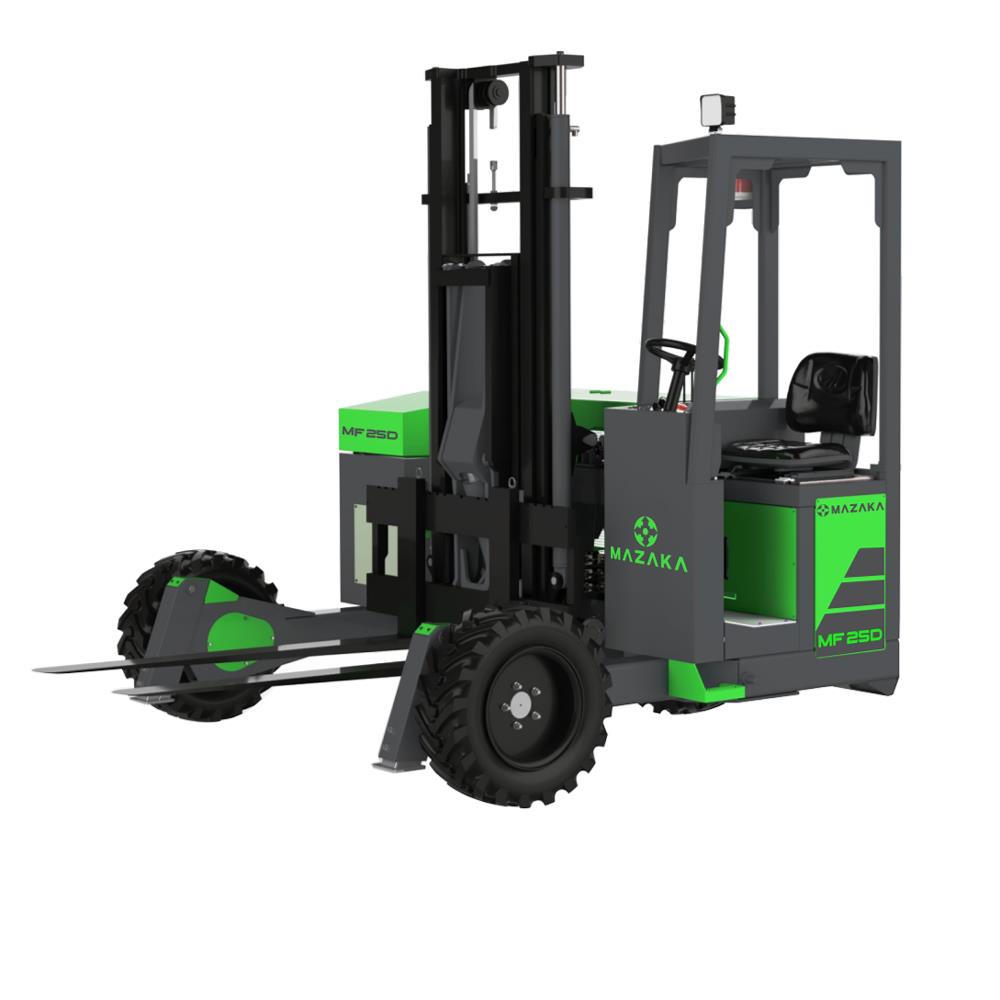

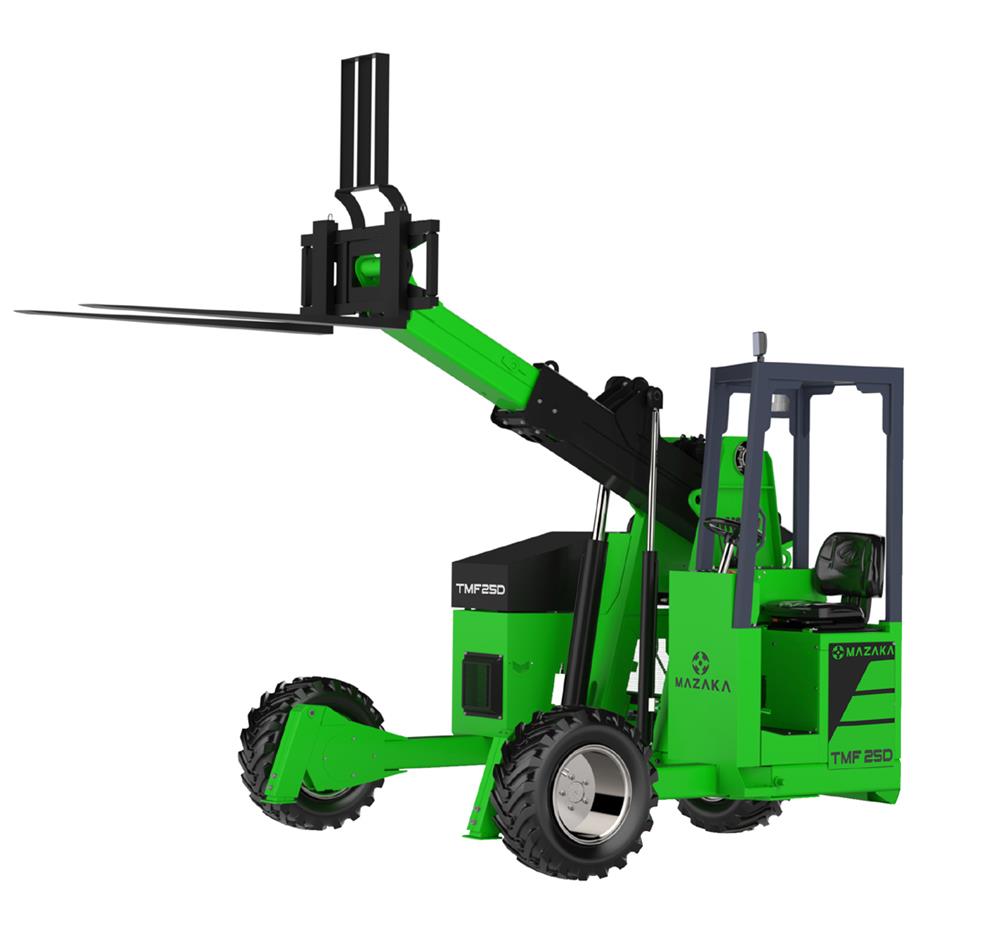

Truck Mounted Forklift

With their power and compact design, Mazaka Truck Mounted Forklifts challenging the city.

Effortlessly increase your dumping speed with our three wheel drive models.
Choose between our models and adapt them to your exact requirements,
carrying loads of up to2500-3500 kg.

Get The Brochure Attachments Contact

Features

Engine

Yanmar

Lift Height

3450 mm

Capacity

2500 Kg

Drive

3X3

Truck Mounted Forklift Truck Mounted Forklift Service Truck Mounted Forklift BrandsTruck Mounted Forklift Price Truck Mounted Forklift Manufacturer Truck Mounted Forklift For Sale

Gallery
Technical Detail
Files

Görüntüle

Performance
TMF 20 K	TMF 25 K
Load Capacity 2000/1200 kg	2500/1600 kg
Boom Drive Stroke 1250 mm	1370 mm
Operating Weight 2100 kg	2550 kg
Travel Speed 10 km/h	12 km/h
Slope Climbing %20	%25
Side-Shifter 100 mm	120 mm
Hydraulic Working Pressure 180 bar	225 bar

Dimensions
TMF 20 K	TMF 25 K
Tires 23 x 8.5 - 12	10X16.5
Fork Mirror (Class A) ISO IIA	ISO IIA
Fork Dimensions (mm) 100X40X1200	125X45X1200
Truck Overhang 1200 mm	1250 mm

Engine
TMF 20 K	TMF 25 K
Model S3L2	S4Q2
Fuel Type Diesel	Diesel
Number of Cylinders 3	4
Power @ 2800 rpm 24 kW	34 kW
Cooling System Water Cooling	Water Cooling

Working
TMF 20 K	TMF 25 K
Gearbox Hydrostatic	Hydrostatic
Differential Lock Twin-Lock	Twin-Lock
Steering Wheel Rear Wheel	Rear Wheel
Service Brake Static	Static
Parking Brake Electric	Electric
Battery 12 V / 80 A	12 V / 80 A

Tank Capacity
TMF 20 K	TMF 25 K
Fuel Tank 30 Lt	30 Lt
Engine Oil 4 Lt	7 Lt
Hydraulic Oil 40 Lt	40 Lt

truck-mounted-forklift.pdf
