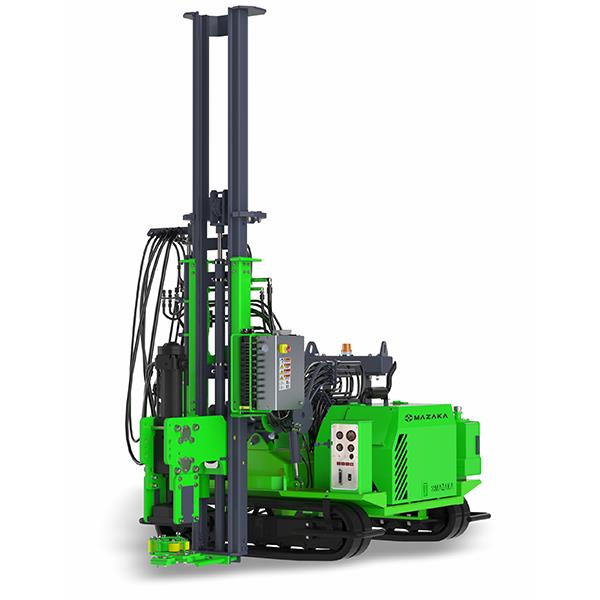

Mazaka MW 600 CW Pile Driver

The Compact Pile Driver

Mazaka MW600 Pile Driver
models are more stable types of
equipment and extremely compact
machineswith high-performance hydraulic
hammers which provide the fastest
movement. On your valuable
requests mast height optionally
can arrange by Mazaka from 2.8
meters up to 3.5 meters.

Get The Brochure Attachments Contact

Features

Engine

Stage 3 Yanmar

Mitsubishi

Hammer Height

2900 mm

Track Type

Rubber

Weight

2950 Kg

Gallery
Technical Detail
Video
Files

Görüntüle

ENGINE
Make	YANMAR
Model	4TNV88
Cylinders	4
Dsplacement l (c)	2.19 (134)
Gross Power hp (kW)	47.6 (35.5)
Rated Speed rpm	3.000
Certfica	Stage 5
Fuel Tank	501
DPF Filter	yes

HAMMER
Oil Pressure Range	120 bar
Joule	900 Nm
Oil Flow Range	65 flow
Hammer Weight

HYDRAULIC SYSTEM
Oil Flow Rate	751
Oil Pressure	180 bar
Oil Tank	1201

MACHINE TRAVEL SPEED
Low Speed	2 km/h
High Speed	-----
Gradeability	30°
Side Walk	10°

DIMENSION
Machine Lenght	1670 mm
Transport Width	2065 mm
Transport Height	2340 mm
Transport Lenght	1670 mm
Weight	2950 kg
Angle of mast forward	10°
Angle of mast backward	63°

OPTIONAL
Engine Stage 3 Yanmar, Mitsubishi
Laser Height Management System
Auto Mast Leveling
GPS Macihnery Control System
Hammer 1060 J
Mast 4500 mm
Down The Hole 4"
Auger 8000 Nm
Remote Control
Post Exctractor
