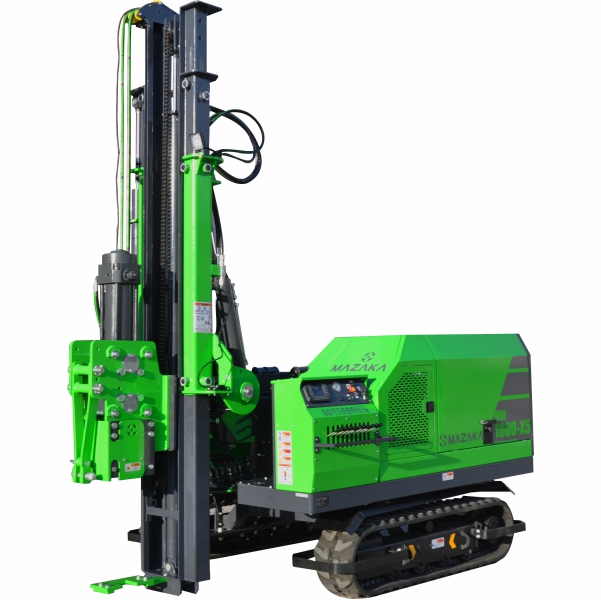

The Compact Pile Driver
MW1600-X5 models are Mazaka's new designs and are equipped with a turning system.
It has been realized to work in slope and hard solis.
The machine can assure excellent stability and the fastest works
in installing piles of large dimensions.
The standard models can reach from 6.3 mast height.
On request, it is very easy to apply on the standard
pile driver double extension mast and Predrilling system
(Rock drilling with DTH or Auger).
Get The BrochureAttachmentsContact
Features
Pile Driver Pile Driver Machine Pile Driver Price Pile Driver Manufacturer Pile Driving Machine Pile Driver Machine For Sale
| ENGINE | |
| Make | DEUTZ/CAT/YANMAR |
|
|
| Cylinders | 3 |
| | |
| Gross Power | 45 kW |
| Rated Speed | 2.600 rpm |
| Certfica | Stage 5 |
| Fuel Tank | 120 l |
| DPF Filter | yes |
| HAMMER | |
| Operating Pressure | 120 bar |
| Power | 1450 Joule |
| Oil Flow | 70-90 l |
| |
| HYDRAULIC SYSTEM | |
| Oil Flow Rate | 50-100 l |
| Oil Pressure | 200 bar |
| Oil Tank | 200 l |
| TRAVEL SPEED | |
| Low Speed | 2 km/h |
| High Speed | 4.4 km/h |
| Gradeability | 20° |
| Side Walk | 12° |
| Truck Type | Rubber |
| DIMENSION | |
| Transport Width | 2050 mm |
| Transport Height | 2280 mm |
| Transport Lenght | 3810 mm |
| Widht of Machine | 2050 mm |
| Height of Machine | 3130 mm |
| Lenght of Machine | 3600 mm |
| Weight | 4950 kg |
| Mast Height | 6300 mm |
| Angle of mast forward | 20° |
| Angle of mast backward | -160° |
| OPTIONAL | |
| DTH - Auger - Post Extractor - GPS/GNSS | |
| Remote Control - Hydromotor System For Ground Screw | |
| Auto Leveling - Hammer Height Control System | |
| Laser Meter - Stabilizer Cylinder | |
