Mazaka MW1200 Pile Driver

PILE DRIVER MW1200

LET’S GET TO KNOW IT BETTER

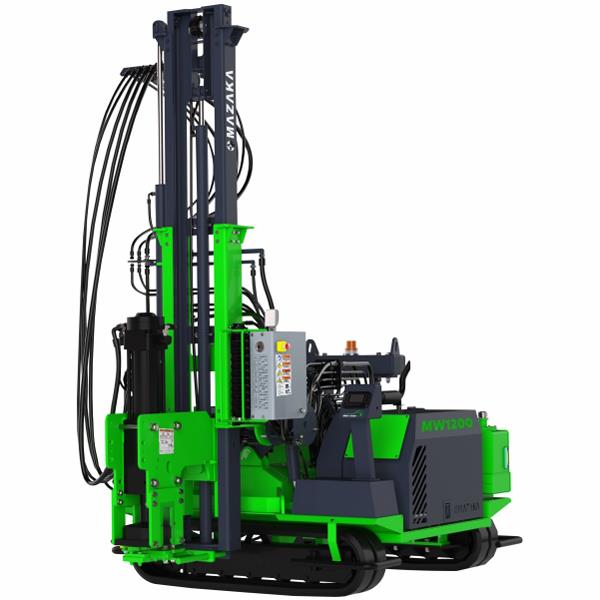

The MW1200 pile driver is a high-performance and heavy-duty machine designed for efficient and precise pile installation in a variety of construction applications. With its powerful hammer, extended mast height, and adjustable settings, the MW1200 is ideal for solar farms, fencing, guardrails, and infrastructure projects.

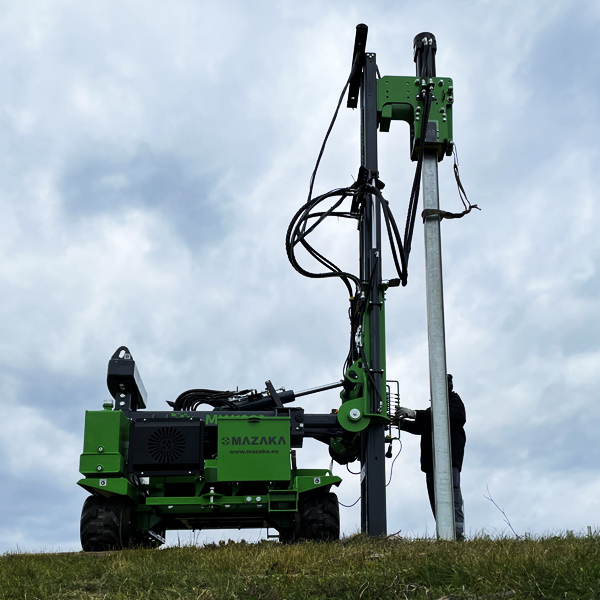

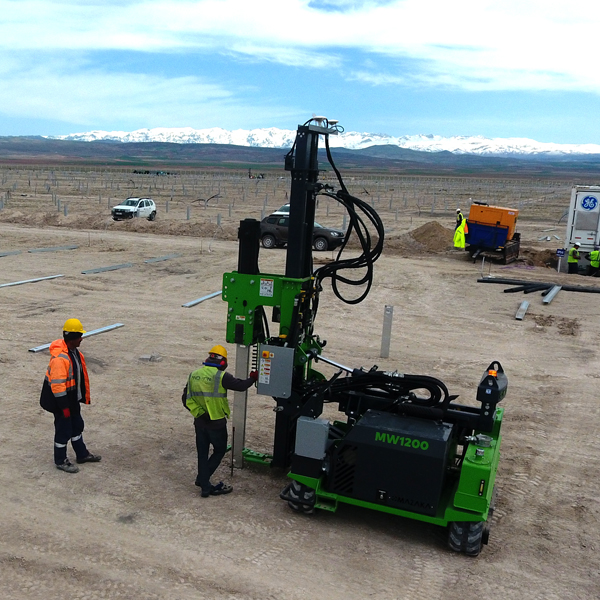

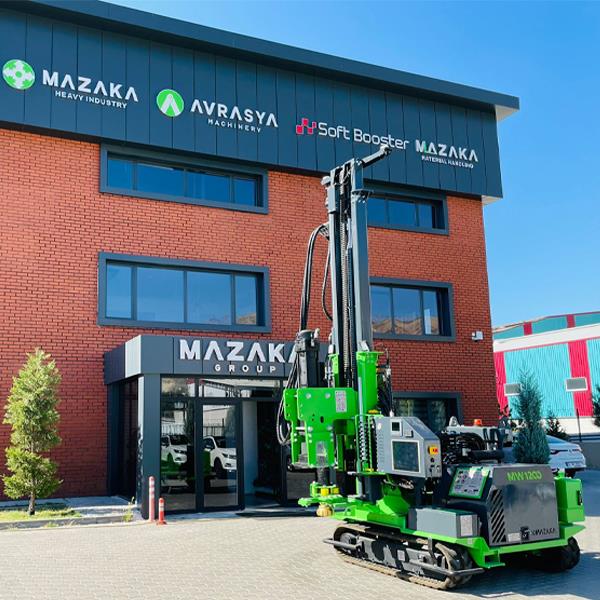

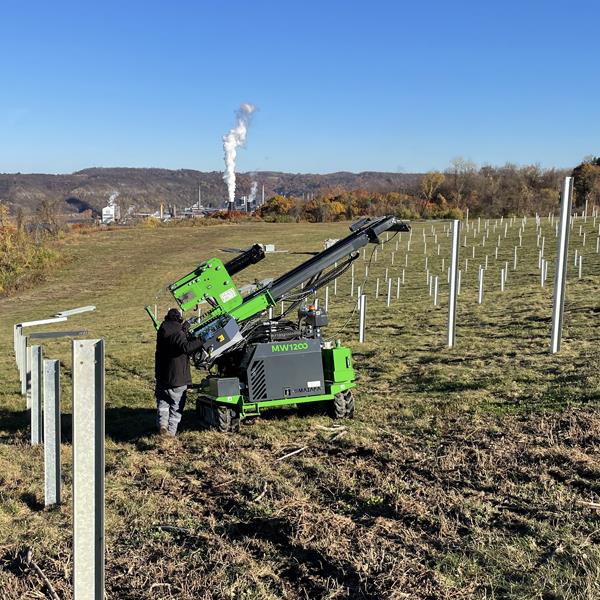

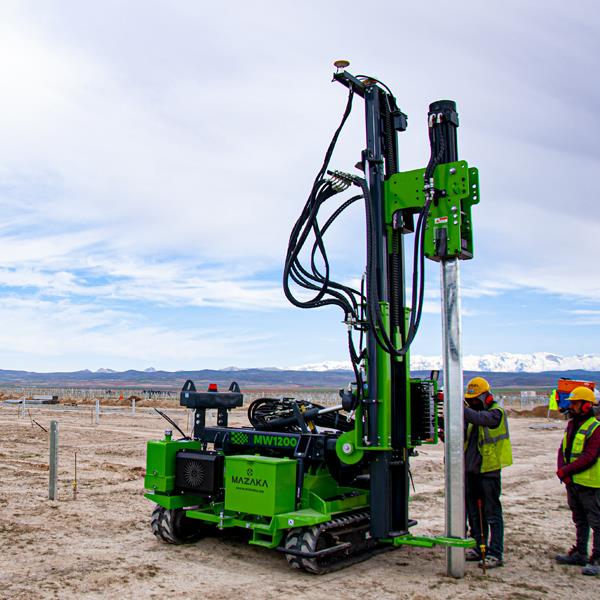

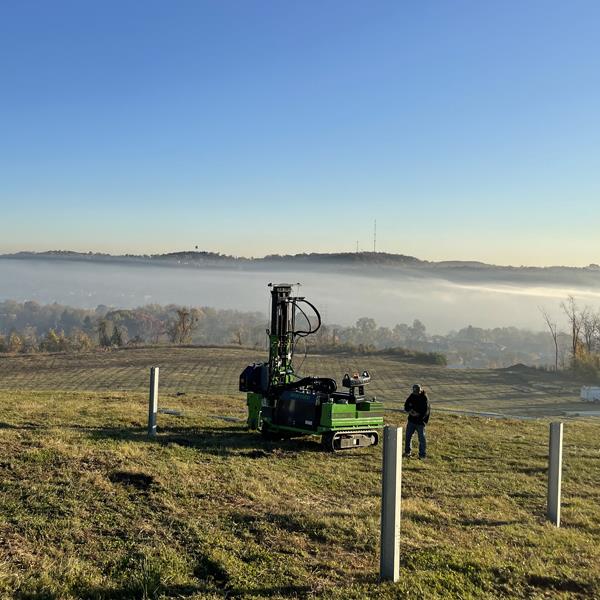

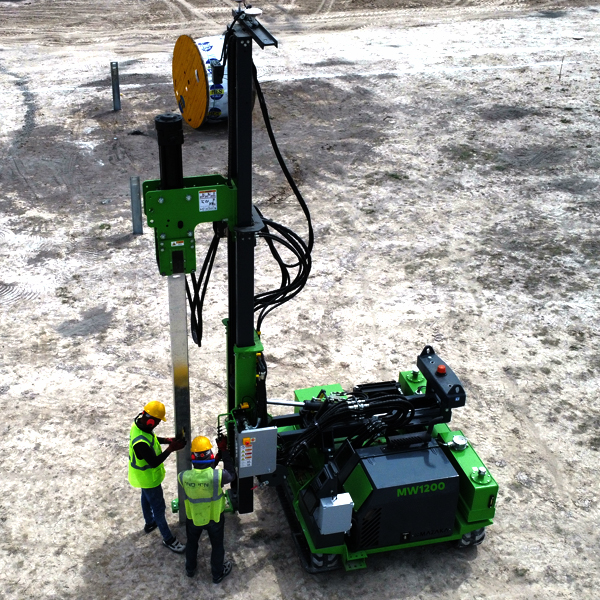

GALLERY

BROCHURE

ENGINE YANMAR

MAST 6100 mm

HAMMER 1200 Joule

CRAWLER RUBBER

WEIGHT 4750 Kg

TECHNICAL SPECIFICATIONS

Engine
Make	YANMAR
Power	35 kW / Stage 5 36 kW / Stage 3
Rated Speed	2200 rpm
Fuel Tank	60 l
DPF Filter	Standart on Stage 5 Engine
Hammer
Power	1200 Joule
Operating Pressure	120 bar
Hammer Blow Rate	570–1180
Hydraulic System
Oil Flow Rate	50–100 l
Oil Pressure	180 bar
Oil Tank	150 l
Travel
Low / High Speed	2.2 / 4 km/h
Gradeability	20%
Sidewalk	10°
Crawler Type	Rubber

Dimension
Transport Width	A1 – 2290 mm
Transport Height	A2 – 2770 mm
Transport Length	A3 – 3660 mm
Width of Machine	A1 – 2290 mm
Height of Machine	A4 – 3750 mm
Length of Machine	A5 – 3150 mm
Mast Height	A6 – 6100 mm
Weight	4750 kg
Rotation	No
Tilt	10°
Angle of mast forward	12°
Angle of mast backward	-63°
