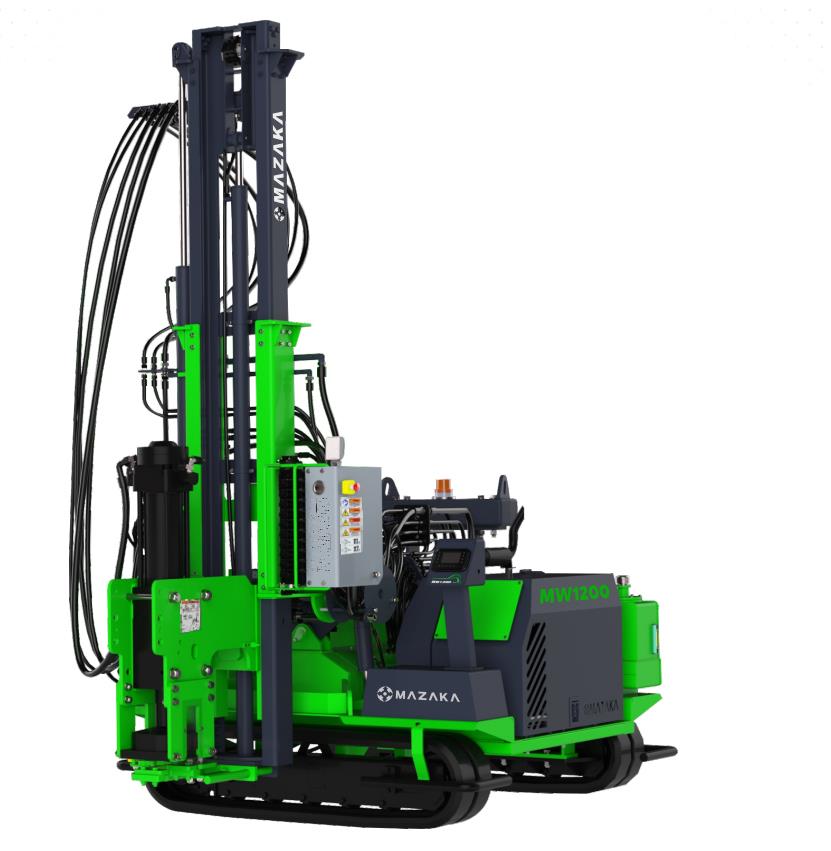

Mazaka MW 1200 CW Pile Driver
The Compact Pile Driver
MW1200 models are machines with large dimensions. It has been realized to work in slope and hard solis.
The machine can assure excellent stability and the fastest works in installing piles of large dimensions.
The standard models can reach from 4.6 m up to 6.1 mast height.
On request, it is very easy to apply on the standard pile driver double extension mast and Predrilling system (Rock drilling with DTH or Auger).
Optional Features
- Laser Height Management System
- Auto Mast Leveling
- GPS Pile Location System
- Down The Hole
- Auger
- Remote Control
- Post Exctractor
Engine
| Make | Yanmar |
| Model | 4TNV88 |
| Cylinders | 4 |
| Dsplacement l (ci) | 2.19 (134) |
| Gross Power hp (kW) | 47.6 (35.5) |
| Rated Speed rpm | 3000 |
| Certifica | Stage 5 |
| Fuel Tank | 50 l |
| DPF Filter | Yes |
Hammer
| Oil Pressure Range | 120 bar |
| Joule | 1450 Nm |
| Oil Flow | 80 flow |
| Hammer Weght | ------ |
Hydraulic System
| Oil Flow Rate | 80 l |
| Oil Pressure | 180 bar |
| Oil Tank | 200 l |
Machine Travel Speed
| Low Speed | 2 km/h |
| High Speed | 4 km/h |
| Gradeability | 30° |
| Side Walk | 10° |
Dimension
| Machine Lenght | 2100 mm |
| Transport Widht | 4155 mm |
| Transport Height | 2265 mm |
| Transport Lenght | 2188 mm |
| Weight | 4750 kg |
| Angle of mast forward | 10° |
| Angle of mast backward | 65° |
Optional
| Engine Stage 5 Yanmar 53 Kw |
| Laser Height Management System |
| Auto Mast Leveling |
| GPS Machinery Control System |
| Down The Hole 10" |
| Auger 12000 Nm |
| Remote Control |
| Post Exctractor |
.
