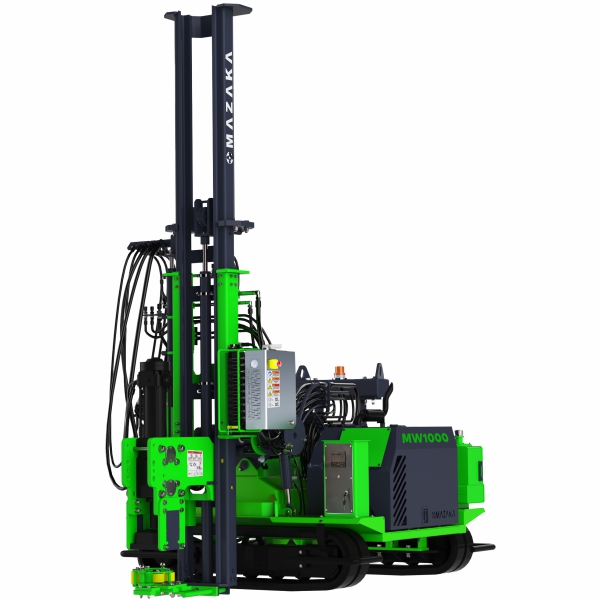

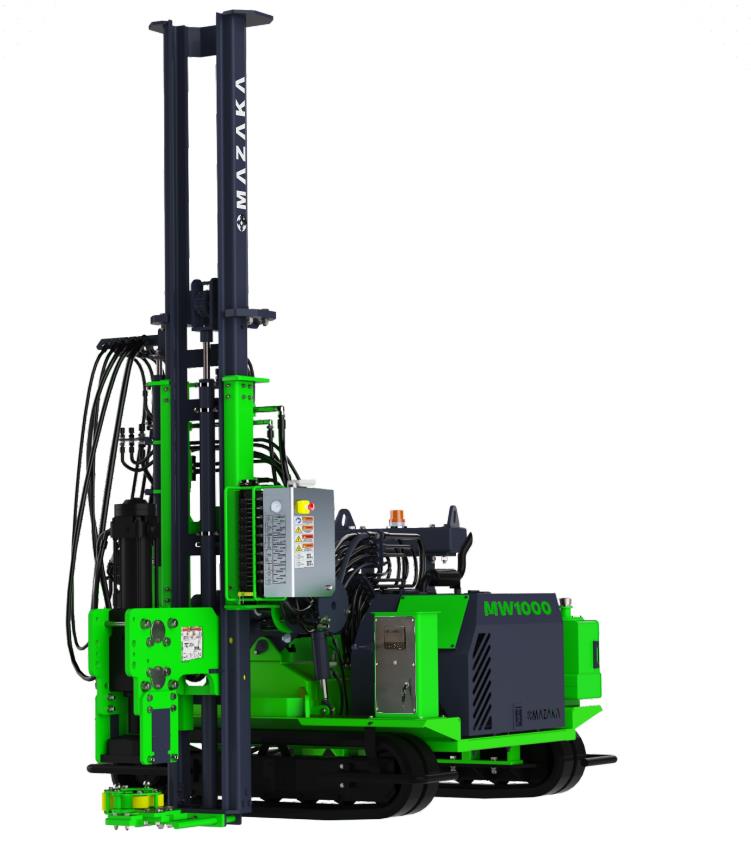

Mazaka MW 1000 CW Pile Driver
The Compact Pile Driver
MW1000 models are machines with large dimensions. It has been realized to work n slope and hard soils.
The machine can assure excellent stability and the fastest works in installing piles of large dimensions.
The standard models can reach from 4.6 m up to 6.1 mast height.
On request, it is very easy to apply on the standard pile driver double extension mast and Predrilling system (Rock drillng with DTH or Auger)
Optional Features
- Laser Height Management System
- Auto Mast Leveling
- GPS Pile Location System
- 1450 J Hammer
- 6000mm Mast
- Down The Hole
- Auger
- Remote Control
- Post Exctractor
Engine
| Make | Yanmar |
| Model | 4TNV88 |
| Cylinders | 4 |
| Dsplacement l (ci) | 2.19 (134) |
| Gross Power hp (kW) | 47.6 (35.5) |
| Rated Speed rpm | 3000 |
| Certifica | Stage 5 |
| Fuel Tank | 50 l |
| DPF Filter | Yes |
Hammer
| Oil Pressure Range | 120 bar |
| Joule | 1060 Nm |
| Oil Flow | 75 flow |
| Hammer Weght | ------ |
Hydraulic System
| Oil Flow Rate | 75 l |
| Oil Pressure | 180 bar |
| Oil Tank | 180 l |
Machine Travel Speed
| Low Speed | 2 km/h |
| High Speed | 4 km/h |
| Gradeability | 30° |
| Side Walk | 10° |
Dimension
| Machine Lenght | 2100 mm |
| Transport Widht | 3375 mm |
| Transport Height | 2143 mm |
| Transport Lenght | 2188 mm |
| Weight | 4350 kg |
| Angle of mast forward | 10° |
| Angle of mast backward | 65° |
Optional
| Engine Stage 5 Yanmar 53 Kw |
| Laser Height Management System |
| Auto Mast Leveling |
| GPS Machinery Control System |
| Hammer 1450 J |
| Mast 6000 mm |
| Down The Hole 8" |
| Auger 10000 Nm |
| Remote Control |
| Post Exctractor |
.
